Laser Photoplotters
SLEC - 7168
|

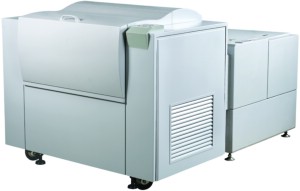

SLEC-7168 LASER PLOTTER is the high-end 32 beams auto laser plotting product, and this model consists of a laser plotter and a all on-line film developer, SLEC-7168 is working at 8000dpi resolution, This model has the features of wide exposure size, high efficiency, high precision and auto day-light operation. These products are suitable for the output of the film of high precision double-sided PCB, high-density multilayer PCB and LED. |
| |
SLEC-7168 laser plotter adopts 32 beams semiconductor laser source; the high precision ball-bearing screw rod; The precise phase steeping motor; driving system and more advanced laser modulation technology, which ensure the high scanning precision in transmission and makes the product be more stable and makes its life be longer. The auto loading unloading film function ensures the operation easier and more efficient. The non-linear electronic correction technology ensures the high precision and gives the nonlinear precision compensation. LCD display makes operation easier and friendlier. The ABS material laser quick molding, which make the product elegant, light and hard. The auto light power correction makes the optical system more stable. |
| |
| TECHNICAL PARAMETERS |
Item
|
Description
|
Model
|
SLEC-7168
|
Scanning Structure
|
External Drum
|
Exposure
|
508mm
×
660mm
|
Resolution
|
8000dpi
|
Positioning Precision
|
±
0.015mm
|
Min. Line Width and Space
|
1mil/1mil
|
Scanning Speed
|
5.3 Minutes
|
Beam
|
32 Beams
|
Light Source
|
32 Beams semi-conductor LASER (Wave Length 650nm)
|
Spots Size
|
3.175um
|
Applicable Film
|
KODAK ERN7; AGFA HTR3;
FUJI
FILM HPR-7S (Thickness:7mil)
|
Film Loading Mode
|
Auto film loading and unloading, Connect with Film Developer (50 Pcs film loading per time allowed)
|
Raster Image Processor
|
Software RIP
|
Working Environment
|
AC220V±2% Temp
20℃
±10% Humidity 55±10%
|
Input/Output Data Format
|
RS-274X (Input data format)
TIFF/BMP/RID (Output data format)
|
Dimension (mm)
|
2300mm
×
1400mm
×
1150mm
|
Weight
|
500kg
|
|
|
